Abstract structure for a 2D shape. More...

#include <Shapes.h>

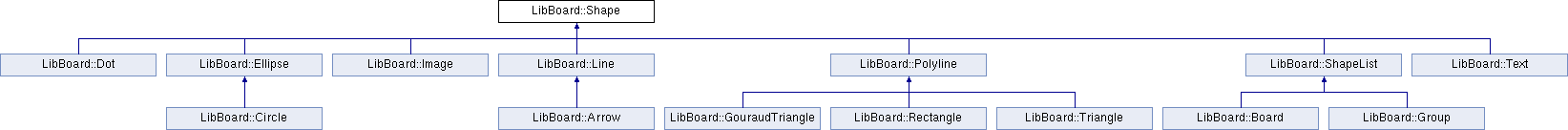

Inheritance diagram for LibBoard::Shape:

Public Types
enum	LineCap { ButtCap = 0, RoundCap, SquareCap }

enum	LineJoin { MiterJoin = 0, RoundJoin, BevelJoin }

enum	LineStyle { SolidStyle = 0, DashStyle, DotStyle, DashDotStyle, DashDotDotStyle, DashDotDotDotStyle }

Public Member Functions
	Shape (Color penColor, Color fillColor, double lineWidth, LineStyle style, const LineCap cap, const LineJoin join, int depth)

virtual	~Shape ()

virtual const std::string &	name () const

virtual Shape *	clone () const =0

bool	filled () const

virtual Point	center () const

virtual Shape &	rotate (double angle, const Point &center)=0

virtual Shape &	rotate (double angle)=0

Shape &	rotateDeg (double angle, const Point &center)

Shape &	rotateDeg (double angle)

virtual Shape &	translate (double dx, double dy)=0

Shape &	moveCenter (double x, double y)

Shape &	moveCenter (Point p)

virtual Shape &	scale (double sx, double sy)=0

virtual Shape &	scale (double s)=0

virtual Rect	boundingBox () const =0

Rect	bbox () const

Shape &	operator-- ()

Shape &	operator++ ()

virtual void	scaleAll (double s)=0

virtual void	flushPostscript (std::ostream &stream, const TransformEPS &transform) const =0

virtual void	flushFIG (std::ostream &stream, const TransformFIG &transform, std::map< Color, int > &colormap) const =0

virtual void	flushSVG (std::ostream &stream, const TransformSVG &transform) const =0

virtual void	flushTikZ (std::ostream &stream, const TransformTikZ &transform) const =0

int	depth () const

virtual void	depth (int)

virtual void	shiftDepth (int shift)

const Color &	penColor () const

const Color &	fillColor () const

Protected Member Functions
std::string	svgProperties (const TransformSVG &transform) const

std::string	postscriptProperties () const

std::string	tikzProperties (const TransformTikZ &transform) const

Protected Attributes
int	_depth

Color	_penColor

Color	_fillColor

double	_lineWidth

LineStyle	_lineStyle

LineCap	_lineCap

LineJoin	_lineJoin

Detailed Description

Abstract structure for a 2D shape.

Shape structure.

Constructor & Destructor Documentation

LibBoard::Shape::Shape	(	Color	penColor,
		Color	fillColor,
		double	lineWidth,
		LineStyle	style,
		const LineCap	cap,
		const LineJoin	join,
		int	depth
	)

inline

Shape constructor.

Parameters

penColor	The pen color of the shape.
fillColor	The fill color of the shape.
lineWidth	The line thickness.
depth	The depth of the shape.

virtual LibBoard::Shape::~Shape ( )

inlinevirtual

Shape destructor.

Member Function Documentation

Rect LibBoard::Shape::bbox ( ) const

inline

Compute the bounding box of the figure. (Convenience method to call "boundingBox" with a short name.)

Examples:: examples/koch.cpp.

Referenced by LibBoard::Board::drawBoundingBox(), LibBoard::Image::flushFIG(), LibBoard::Group::flushFIG(), LibBoard::Board::saveEPS(), LibBoard::Board::saveFIG(), and LibBoard::Board::saveSVG().

virtual Rect LibBoard::Shape::boundingBox ( ) const

pure virtual

Compute the bounding box of the figure.

Returns: The rectangle of the bounding box.

Implemented in LibBoard::Text, LibBoard::Ellipse, LibBoard::Polyline, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Image, and LibBoard::ShapeList.

Referenced by LibBoard::ShapeList::addTiling(), LibBoard::ShapeList::append(), and center().

Point LibBoard::Shape::center ( ) const

virtual

Returns the center of the shape.

Returns: The center of the shape, i.e. the center of its bounding box.

Reimplemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Polyline, LibBoard::Line, LibBoard::Dot, and LibBoard::Image.

References boundingBox().

Referenced by moveCenter(), LibBoard::ShapeList::rotate(), LibBoard::Board::rotate(), LibBoard::Group::rotate(), LibBoard::ShapeList::scale(), LibBoard::Board::scale(), and LibBoard::Group::scale().

virtual Shape* LibBoard::Shape::clone ( ) const

pure virtual

Return a copy of the shape.

Returns: A copy of the shape.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Triangle, LibBoard::Rectangle, LibBoard::Polyline, LibBoard::Arrow, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::ShapeList, and LibBoard::Image.

Referenced by LibBoard::Board::addDuplicates(), LibBoard::ShapeList::addTiling(), LibBoard::ShapeList::append(), LibBoard::ShapeList::operator+=(), LibBoard::ShapeList::operator<<(), and LibBoard::ShapeList::ShapeList().

bool LibBoard::Shape::filled ( ) const

inline

Checks whether a shape is filled with a color or not.

Returns: true if the shape is filled.

References _fillColor.

Referenced by LibBoard::Arrow::flushFIG(), LibBoard::Polyline::flushFIG(), LibBoard::Rectangle::flushFIG(), LibBoard::Ellipse::flushFIG(), LibBoard::Arrow::flushPostscript(), LibBoard::Polyline::flushPostscript(), and LibBoard::Ellipse::flushPostscript().

virtual void LibBoard::Shape::flushFIG	(	std::ostream &	stream,
		const TransformFIG &	transform,
		std::map< Color, int > &	colormap
	)		const

pure virtual

Write the FIG code of the shape in a stream according to a transform.

Parameters

stream	The output stream.
transform	A 2D transform to be applied.

Implemented in LibBoard::Text, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Rectangle, LibBoard::Polyline, LibBoard::Arrow, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Image, and LibBoard::ShapeList.

virtual void LibBoard::Shape::flushPostscript	(	std::ostream &	stream,
		const TransformEPS &	transform
	)		const

pure virtual

Write the EPS code of the shape in a stream according to a transform.

Parameters

stream	The output stream.
transform	A 2D transform to be applied.

Implemented in LibBoard::Text, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Polyline, LibBoard::Arrow, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Image, and LibBoard::ShapeList.

virtual void LibBoard::Shape::flushSVG	(	std::ostream &	stream,
		const TransformSVG &	transform
	)		const

pure virtual

Write the SVG code of the shape in a stream according to a transform.

Parameters

stream	The output stream.
transform	A 2D transform to be applied.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Rectangle, LibBoard::Polyline, LibBoard::Arrow, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Image, and LibBoard::ShapeList.

virtual void LibBoard::Shape::flushTikZ	(	std::ostream &	stream,
		const TransformTikZ &	transform
	)		const

pure virtual

Write the TikZ code of the shape in a stream according to a transform.

Parameters

stream	The output stream.
transform	A 2D transform to be applied.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Rectangle, LibBoard::Polyline, LibBoard::Arrow, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Image, and LibBoard::ShapeList.

Shape & LibBoard::Shape::moveCenter	(	double	x,
		double	y
	)

Move the center of the shape.

Parameters

x	The new x coordinate of the center.
y	The new y coordinate of the center.

Returns: A reference to the shape itself.

References center(), translate(), LibBoard::Point::x, and LibBoard::Point::y.

Referenced by LibBoard::ShapeList::append().

Shape & LibBoard::Shape::moveCenter ( Point p )

Move the center of the shape.

Parameters

p	The new center.

Returns: A reference to the shape itself.

References center(), translate(), LibBoard::Point::x, and LibBoard::Point::y.

const std::string & LibBoard::Shape::name ( ) const

virtual

Returns the generic name of the shape (e.g., Circle, Rectangle, etc.)

Returns

Reimplemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Triangle, LibBoard::Rectangle, LibBoard::Polyline, LibBoard::Arrow, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::ShapeList, and LibBoard::Image.

Shape& LibBoard::Shape::operator++ ( )

inline

Increment the depth of the shape. (Push the shape toward the background.)

Returns: A reference to the shape itself.

Shape& LibBoard::Shape::operator-- ( )

inline

Decrement the depth of the shape. (Pull the shape toward the foreground.)

Returns: A reference to the shape itself.

std::string LibBoard::Shape::postscriptProperties ( ) const

protected

Return a string of the properties lineWidth, penColor, lineCap, and lineJoin as Postscript commands.

Returns: A string of the Postscript commands.

References _lineCap, _lineJoin, _lineStyle, and _lineWidth.

Referenced by LibBoard::Dot::flushPostscript(), LibBoard::Line::flushPostscript(), LibBoard::Arrow::flushPostscript(), LibBoard::Polyline::flushPostscript(), and LibBoard::Ellipse::flushPostscript().

virtual Shape& LibBoard::Shape::rotate	(	double	angle,
		const Point &	center
	)

pure virtual

Rotate the shape around a given center of rotation.

Parameters

angle	The rotation angle in radian.
center	The center of rotation.

Returns: A reference to the shape itself.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Polyline, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Board, LibBoard::Image, and LibBoard::ShapeList.

Referenced by LibBoard::Board::addDuplicates(), and LibBoard::ShapeList::ShapeList().

virtual Shape& LibBoard::Shape::rotate ( double angle )

pure virtual

Rotate the shape around its center.

Parameters

angle The rotation angle in radian.

Returns: A reference to the shape itself.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Polyline, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Board, LibBoard::Image, and LibBoard::ShapeList.

Shape& LibBoard::Shape::rotateDeg	(	double	angle,
		const Point &	center
	)

inline

Rotate the shape around a given center of rotation.

Parameters

angle	The rotation angle in degree.
center	The center of rotation.

Returns: A reference to the shape itself.

Examples:: examples/example4.cpp.

Shape& LibBoard::Shape::rotateDeg ( double angle )

inline

Rotate the shape around its center.

Parameters

angle	The rotation angle in degree.
center	The center of rotation.

Returns: A reference to the shape itself.

virtual Shape& LibBoard::Shape::scale	(	double	sx,
		double	sy
	)

pure virtual

Scale the shape along the x an y axis.

Parameters

sx	The scaling factor along the x axis.
sy	The scaling factor along the y axis.

Returns: The shape itself.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::Polyline, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Image, LibBoard::Board, and LibBoard::ShapeList.

Referenced by LibBoard::Board::addDuplicates(), and LibBoard::ShapeList::ShapeList().

virtual Shape& LibBoard::Shape::scale ( double s )

pure virtual

Scale the shape along both axis.

Parameters

s	The scaling factor along both axis.

Returns: The shape itself.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::Polyline, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Image, LibBoard::Board, and LibBoard::ShapeList.

virtual void LibBoard::Shape::scaleAll ( double s )

pure virtual

Scale all the values (positions, dimensions, etc.) associated with the shape.

Parameters

s	The scaling factor.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::GouraudTriangle, LibBoard::Rectangle, LibBoard::Polyline, LibBoard::Line, LibBoard::Dot, LibBoard::Image, and LibBoard::ShapeList.

std::string LibBoard::Shape::svgProperties ( const TransformSVG & transform ) const

protected

Return a string of the svg properties lineWidth, opacity, penColor, fillColor, lineCap, and lineJoin.

Returns: A string of the properties suitable for inclusion in an svg tag.

References _fillColor, _lineCap, _lineJoin, _lineStyle, _lineWidth, _penColor, and LibBoard::Color::svgAlpha().

Referenced by LibBoard::Dot::flushSVG(), LibBoard::Line::flushSVG(), LibBoard::Polyline::flushSVG(), LibBoard::Rectangle::flushSVG(), LibBoard::Ellipse::flushSVG(), and LibBoard::Circle::flushSVG().

std::string LibBoard::Shape::tikzProperties ( const TransformTikZ & transform ) const

protected

Return a string of the properties lineWidth, penColor, lineCap, and lineJoin as TikZ commands.

Returns: A string of the TikZ commands.

References _fillColor, _lineCap, _lineJoin, _lineStyle, _lineWidth, _penColor, and LibBoard::Color::tikz().

Referenced by LibBoard::Line::flushTikZ(), LibBoard::Arrow::flushTikZ(), LibBoard::Polyline::flushTikZ(), LibBoard::Ellipse::flushTikZ(), LibBoard::Circle::flushTikZ(), and LibBoard::Text::flushTikZ().

virtual Shape& LibBoard::Shape::translate	(	double	dx,
		double	dy
	)

pure virtual

Translate the shape by a given offset.

Parameters

dx	The x offset.
dy	The y offset.

Returns: A reference to the shape itself.

Implemented in LibBoard::Text, LibBoard::Circle, LibBoard::Ellipse, LibBoard::Polyline, LibBoard::Line, LibBoard::Dot, LibBoard::Group, LibBoard::Image, LibBoard::Board, and LibBoard::ShapeList.

Referenced by LibBoard::Board::addDuplicates(), LibBoard::ShapeList::addTiling(), moveCenter(), and LibBoard::ShapeList::ShapeList().

Member Data Documentation

int LibBoard::Shape::_depth

protected

The depth of the shape.

Referenced by LibBoard::Image::flushFIG(), LibBoard::Dot::flushFIG(), LibBoard::Line::flushFIG(), LibBoard::Arrow::flushFIG(), LibBoard::Polyline::flushFIG(), LibBoard::Rectangle::flushFIG(), LibBoard::Ellipse::flushFIG(), LibBoard::Text::flushFIG(), LibBoard::GouraudTriangle::flushPostscript(), and LibBoard::GouraudTriangle::flushSVG().

Color LibBoard::Shape::_fillColor

protected

The color of the shape.

Referenced by filled(), LibBoard::Polyline::flushFIG(), LibBoard::Rectangle::flushFIG(), LibBoard::Ellipse::flushFIG(), LibBoard::Polyline::flushPostscript(), LibBoard::Ellipse::flushPostscript(), LibBoard::Arrow::flushSVG(), svgProperties(), and tikzProperties().

LineCap LibBoard::Shape::_lineCap

protected

The linecap attribute. (The way line terminates.)

Referenced by LibBoard::Dot::flushFIG(), LibBoard::Line::flushFIG(), LibBoard::Arrow::flushFIG(), LibBoard::Polyline::flushFIG(), LibBoard::Rectangle::flushFIG(), postscriptProperties(), svgProperties(), and tikzProperties().

LineJoin LibBoard::Shape::_lineJoin

protected

The linejoin attribute. (The shape of line junctions.)

Referenced by LibBoard::Dot::flushFIG(), LibBoard::Line::flushFIG(), LibBoard::Arrow::flushFIG(), LibBoard::Polyline::flushFIG(), LibBoard::Rectangle::flushFIG(), postscriptProperties(), svgProperties(), and tikzProperties().

LineStyle LibBoard::Shape::_lineStyle

protected

The line style (solid, dashed, etc.).

Referenced by LibBoard::Line::flushFIG(), LibBoard::Arrow::flushFIG(), LibBoard::Polyline::flushFIG(), LibBoard::Rectangle::flushFIG(), LibBoard::Ellipse::flushFIG(), LibBoard::Arrow::flushSVG(), postscriptProperties(), svgProperties(), and tikzProperties().

double LibBoard::Shape::_lineWidth

protected

The line thickness.

Referenced by LibBoard::Dot::flushFIG(), LibBoard::Line::flushFIG(), LibBoard::Arrow::flushFIG(), LibBoard::Polyline::flushFIG(), LibBoard::Rectangle::flushFIG(), LibBoard::Ellipse::flushFIG(), LibBoard::Arrow::flushPostscript(), LibBoard::Arrow::flushSVG(), postscriptProperties(), svgProperties(), and tikzProperties().

Color LibBoard::Shape::_penColor

protected

The color of the shape.

Referenced by LibBoard::Dot::flushFIG(), LibBoard::Line::flushFIG(), LibBoard::Arrow::flushFIG(), LibBoard::Polyline::flushFIG(), LibBoard::Rectangle::flushFIG(), LibBoard::Ellipse::flushFIG(), LibBoard::Text::flushFIG(), LibBoard::Dot::flushPostscript(), LibBoard::Line::flushPostscript(), LibBoard::Arrow::flushPostscript(), LibBoard::Polyline::flushPostscript(), LibBoard::Ellipse::flushPostscript(), LibBoard::Text::flushPostscript(), LibBoard::Arrow::flushSVG(), LibBoard::Text::flushSVG(), svgProperties(), and tikzProperties().

The documentation for this struct was generated from the following files:

include/board/Shapes.h
src/Shapes.cpp
