LibBoard::Polyline Struct Reference

A polygonal line described by a series of 2D points. More...

#include <Shapes.h>

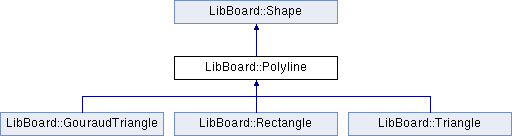

Inheritance diagram for LibBoard::Polyline:
LibBoard::Shape LibBoard::GouraudTriangle LibBoard::Rectangle LibBoard::Triangle

Public Member Functions

 Polyline (const std::vector< Point > &points, bool closed, Color penColor, Color fillColor, double lineWidth, const LineStyle lineStyle=SolidStyle, const LineCap cap=ButtCap, const LineJoin join=MiterJoin, int depth=-1)

 Polyline (const Path &path, Color penColor, Color fillColor, double lineWidth, const LineStyle lineStyle=SolidStyle, const LineCap cap=ButtCap, const LineJoin join=MiterJoin, int depth=-1)

 Polyline (bool closed, Color penColor, Color fillColor, double lineWidth, const LineStyle lineStyle=SolidStyle, const LineCap cap=ButtCap, const LineJoin join=MiterJoin, int depth=-1)

const std::string & name () const

Point center () const

Polylineoperator<< (const Point &p)

Pointoperator[] (const std::size_t n)

const Pointoperator[] (const std::size_t n) const

Polylinerotate (double angle, const Point &center)

Polyline rotated (double angle, const Point &center) const

Polylinerotate (double angle)

Polyline rotated (double angle) const

Polylinetranslate (double dx, double dy)

Polyline translated (double dx, double dy) const

Polylinescale (double sx, double sy)

Polylinescale (double s)

Polyline scaled (double sx, double sy) const

Polyline scaled (double s) const

void scaleAll (double s)

void flushPostscript (std::ostream &stream, const TransformEPS &transform) const

void flushFIG (std::ostream &stream, const TransformFIG &transform, std::map< Color, int > &colormap) const

void flushSVG (std::ostream &stream, const TransformSVG &transform) const

void flushTikZ (std::ostream &stream, const TransformTikZ &transform) const

Rect boundingBox () const

Polylineclone () const

std::size_t vertexCount () const

- Public Member Functions inherited from LibBoard::Shape
 Shape (Color penColor, Color fillColor, double lineWidth, LineStyle style, const LineCap cap, const LineJoin join, int depth)

virtual ~Shape ()

bool filled () const

ShaperotateDeg (double angle, const Point &center)

ShaperotateDeg (double angle)

ShapemoveCenter (double x, double y)

ShapemoveCenter (Point p)

Rect bbox () const

Shapeoperator-- ()

Shapeoperator++ ()

int depth () const

virtual void depth (int)

virtual void shiftDepth (int shift)

const ColorpenColor () const

const ColorfillColor () const


Protected Attributes

Path _path

- Protected Attributes inherited from LibBoard::Shape
int _depth

Color _penColor

Color _fillColor

double _lineWidth

LineStyle _lineStyle

LineCap _lineCap

LineJoin _lineJoin


Additional Inherited Members

- Public Types inherited from LibBoard::Shape
enum  LineCap { ButtCap = 0, RoundCap, SquareCap }

enum  LineJoin { MiterJoin = 0, RoundJoin, BevelJoin }

enum  LineStyle {
  SolidStyle = 0, DashStyle, DotStyle, DashDotStyle,
  DashDotDotStyle, DashDotDotDotStyle
}

- Protected Member Functions inherited from LibBoard::Shape
std::string svgProperties (const TransformSVG &transform) const

std::string postscriptProperties () const

std::string tikzProperties (const TransformTikZ &transform) const


Detailed Description

A polygonal line described by a series of 2D points.

The polyline structure.

Member Function Documentation

Rect LibBoard::Polyline::boundingBox ( ) const
virtual

Compute the bounding box of the figure.

Returns
The rectangle of the bounding box.

Implements LibBoard::Shape.

References LibBoard::Path::boundingBox().

Referenced by LibBoard::Image::boundingBox(), and LibBoard::Image::flushFIG().

Point LibBoard::Polyline::center ( ) const
virtual

Returns the center of the shape.

Returns
The center of the shape, i.e. the center of its bounding box.

Reimplemented from LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle.

References LibBoard::Path::center().

Referenced by LibBoard::Image::center(), LibBoard::Image::flushPostscript(), LibBoard::Image::rotate(), rotate(), rotated(), LibBoard::Rectangle::rotated(), and LibBoard::Image::scale().

Polyline * LibBoard::Polyline::clone ( ) const
virtual

Return a copy of the shape.

Returns
A copy of the shape.

Implements LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle, LibBoard::Triangle, and LibBoard::Rectangle.

void LibBoard::Polyline::flushFIG ( std::ostream &  stream,
const TransformFIG transform,
std::map< Color, int > &  colormap
) const
virtual

Write the FIG code of the shape in a stream according to a transform.

Parameters
streamThe output stream.
transformA 2D transform to be applied.

Implements LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle, and LibBoard::Rectangle.

References LibBoard::Shape::_depth, LibBoard::Shape::_fillColor, LibBoard::Shape::_lineCap, LibBoard::Shape::_lineJoin, LibBoard::Shape::_lineStyle, LibBoard::Shape::_lineWidth, LibBoard::Shape::_penColor, and LibBoard::Shape::filled().

Referenced by LibBoard::Rectangle::flushFIG(), and LibBoard::GouraudTriangle::flushFIG().

void LibBoard::Polyline::flushPostscript ( std::ostream &  stream,
const TransformEPS transform
) const
virtual

Write the EPS code of the shape in a stream according to a transform.

Parameters
streamThe output stream.
transformA 2D transform to be applied.

Implements LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle.

References LibBoard::Shape::_fillColor, LibBoard::Shape::_penColor, LibBoard::Shape::filled(), and LibBoard::Shape::postscriptProperties().

Referenced by LibBoard::GouraudTriangle::flushPostscript(), and LibBoard::Board::saveEPS().

void LibBoard::Polyline::flushSVG ( std::ostream &  stream,
const TransformSVG transform
) const
virtual

Write the SVG code of the shape in a stream according to a transform.

Parameters
streamThe output stream.
transformA 2D transform to be applied.

Implements LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle, and LibBoard::Rectangle.

References LibBoard::Shape::svgProperties().

Referenced by LibBoard::Rectangle::flushSVG(), and LibBoard::GouraudTriangle::flushSVG().

void LibBoard::Polyline::flushTikZ ( std::ostream &  stream,
const TransformTikZ transform
) const
virtual

Write the TikZ code of the shape in a stream according to a transform.

Parameters
streamThe output stream.
transformA 2D transform to be applied.

Implements LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle, and LibBoard::Rectangle.

References LibBoard::Shape::tikzProperties().

Referenced by LibBoard::Rectangle::flushTikZ().

const std::string & LibBoard::Polyline::name ( ) const
virtual

Returns the generic name of the shape (e.g., Circle, Rectangle, etc.)

Returns

Reimplemented from LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle, LibBoard::Triangle, and LibBoard::Rectangle.

Polyline & LibBoard::Polyline::operator<< ( const Point p)

Add a point to the polyline.

Parameters
p
Returns
Point& LibBoard::Polyline::operator[] ( const std::size_t  n)
inline

Returns the n-th point of the polyline.

Parameters
i
Returns
const Point& LibBoard::Polyline::operator[] ( const std::size_t  n) const
inline

Returns the n-th point of the polyline.

Parameters
i
Returns
Polyline & LibBoard::Polyline::rotate ( double  angle,
const Point center
)
virtual

Rotate the shape around a given center of rotation.

Parameters
angleThe rotation angle in radian.
centerThe center of rotation.
Returns
A reference to the shape itself.

Implements LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle.

References LibBoard::Path::rotate().

Referenced by LibBoard::Image::rotate(), rotated(), and LibBoard::Rectangle::rotated().

Polyline & LibBoard::Polyline::rotate ( double  angle)
virtual

Rotate the shape around its center.

Parameters
angleThe rotation angle in radian.
Returns
A reference to the shape itself.

Implements LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle.

References center(), and LibBoard::Path::rotate().

Polyline LibBoard::Polyline::rotated ( double  angle,
const Point center
) const
Parameters
angle
center
Returns

References rotate().

Polyline LibBoard::Polyline::rotated ( double  angle) const
Parameters
angle
Returns

References center(), and rotate().

Polyline & LibBoard::Polyline::scale ( double  sx,
double  sy
)
virtual

Scale the polyline, given two scaling factors.

Parameters
sxScaling factor along the x axis.
syScaling factor along the y axis.
Returns
A reference to the polyline itself, once scaled.

Implements LibBoard::Shape.

References LibBoard::Path::scale().

Referenced by LibBoard::Image::scale(), scale(), scaled(), LibBoard::Rectangle::scaled(), LibBoard::Triangle::scaled(), and LibBoard::GouraudTriangle::scaled().

Polyline & LibBoard::Polyline::scale ( double  s)
virtual

Scale the polyline, given a scaling factor.

Parameters
sScaling factor.
Returns
A reference to the polyline itself, once scaled.

Implements LibBoard::Shape.

References scale().

void LibBoard::Polyline::scaleAll ( double  s)
virtual

Scales all the values (positions, dimensions, etc.) associated with the shape.

Parameters
sThe scaling factor.

Implements LibBoard::Shape.

Reimplemented in LibBoard::GouraudTriangle, and LibBoard::Rectangle.

References LibBoard::Path::scaleAll().

Polyline LibBoard::Polyline::scaled ( double  sx,
double  sy
) const

Returns a scaled copy of the line.

Parameters
sxThe scaling factor along the x axis.
syThe scaling factor along the y axis.
Returns
A scaled copy of the line.

References scale().

Polyline LibBoard::Polyline::scaled ( double  s) const

Returns a scaled copy of the line.

Parameters
sThe scaling factor.
Returns
A scaled copy of the line.

References scale().

Polyline & LibBoard::Polyline::translate ( double  dx,
double  dy
)
virtual

Translate the polyline by a given offset.

Parameters
dxThe x offset.
dyThe y offset.
Returns
A reference to the polyline itself.

Implements LibBoard::Shape.

References LibBoard::Path::translate().

Referenced by LibBoard::Image::translate(), translated(), LibBoard::Rectangle::translated(), LibBoard::Triangle::translated(), and LibBoard::GouraudTriangle::translated().

Polyline LibBoard::Polyline::translated ( double  dx,
double  dy
) const

Returns a translated copy of the polyline.

Parameters
dxShift of the first coordinate.
dyShift of the second coordinate.
Returns
A copy of the polyline, translated.

References translate().


The documentation for this struct was generated from the following files:
