LibBoard::ShapeWithStyle Struct Reference

Abstract structure for a 2D shape. More...

#include <ShapeWithStyle.h>

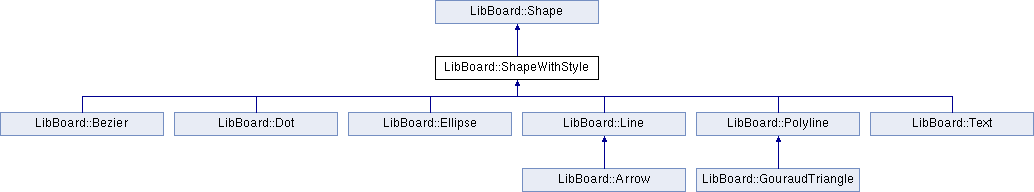

Inheritance diagram for LibBoard::ShapeWithStyle:

Public Member Functions
	ShapeWithStyle (Color penColor, Color fillColor, double lineWidth, LineStyle style, const LineCap cap, const LineJoin join)
	ShapeWithStyle (const Style &style)
	ShapeWithStyle (const ShapeWithStyle &other)
ShapeWithStyle &	operator= (const ShapeWithStyle &other)
	~ShapeWithStyle ()
const std::string &	name () const
Shape *	clone () const =0
const Color &	penColor () const
ShapeWithStyle &	setPenColor (const Color &)
const Color &	fillColor () const
ShapeWithStyle &	setFillColor (const Color &)
double	lineWidth () const
ShapeWithStyle &	setLineWidth (double)
LineStyle	lineStyle () const
ShapeWithStyle &	setLineStyle (LineStyle)
LineCap	lineCap () const
ShapeWithStyle &	setLineCap (LineCap)
LineJoin	lineJoin () const
ShapeWithStyle &	setLineJoin (LineJoin)
Style	style () const
ShapeWithStyle &	setStyle (const Style &)
bool	filled () const
Public Member Functions inherited from LibBoard::Shape
	Shape ()
virtual	~Shape ()
virtual Point	center (LineWidthFlag lineWidthFlag=IgnoreLineWidth) const
virtual Shape &	rotate (double angle, const Point &center)=0
virtual Shape &	rotate (double angle)=0
Shape &	rotateDeg (double angle, const Point &center)
Shape &	rotateDeg (double angle)
virtual Shape &	translate (double dx, double dy)=0
Shape &	moveCenter (double x, double y, LineWidthFlag lineWidthFlag=IgnoreLineWidth)
Shape &	moveCenter (Point p, LineWidthFlag lineWidthFlag=IgnoreLineWidth)
virtual Shape &	scale (double sx, double sy)=0
virtual Shape &	scale (double s)=0
Shape &	resize (double width, double height, LineWidthFlag lineWidthFlag)
Shape &	scaleToWidth (double w, LineWidthFlag lineWidthFlag)
Shape &	scaleToHeight (double h, LineWidthFlag lineWidthFlag)
virtual Rect	boundingBox (LineWidthFlag) const =0
Rect	bbox (LineWidthFlag) const
virtual void	scaleAll (double s)=0
virtual void	flushPostscript (std::ostream &stream, const TransformEPS &transform) const =0
virtual void	flushFIG (std::ostream &stream, const TransformFIG &transform, std::map< Color, int > &colormap) const =0
virtual void	flushSVG (std::ostream &stream, const TransformSVG &transform) const =0
virtual void	flushTikZ (std::ostream &stream, const TransformTikZ &transform) const =0
virtual void	accept (ShapeVisitor &visitor)
	Accepts a visitor object. More...
virtual void	accept (const ShapeVisitor &visitor)
	Accepts a visitor object. More...
virtual void	accept (ConstShapeVisitor &visitor) const
	Accepts a const-shape visitor object. More...
virtual void	accept (const ConstShapeVisitor &visitor) const
	Accepts a const-shape visitor object. More...
virtual Shape *	accept (CompositeShapeTransform &transform) const
	Accept a composite shape transform. More...
virtual Shape *	accept (const CompositeShapeTransform &transform) const
	Accept a constant composite shape transform. More...
	Shape (const Shape &other)

Static Public Member Functions
static void	setLineWidthScaling (bool)

Protected Member Functions
void	updateLineWidth (double s)

Protected Attributes
Style	_style

Detailed Description

Abstract structure for a 2D shape.

ShapeWithStyle structure.

Constructor & Destructor Documentation

ShapeWithStyle() [1/2]

LibBoard::ShapeWithStyle::ShapeWithStyle ( Color  penColor, Color  fillColor, double  lineWidth, LineStyle  style, const LineCap  cap, const LineJoin  join  )

inline

ShapeWithStyle constructor.

Parameters

penColor	The pen color of the shape.
fillColor	The fill color of the shape.
lineWidth	The line thickness.
style	The line style.
cap	The line cap style.
join	The line join style.

ShapeWithStyle() [2/2]

LibBoard::ShapeWithStyle::ShapeWithStyle ( const Style &  style )

inline

ShapeWithStyle constructor.

Parameters

style

Style properties

~ShapeWithStyle()

LibBoard::ShapeWithStyle::~ShapeWithStyle

(

)

Shape destructor.

Member Function Documentation

clone()

Shape* LibBoard::ShapeWithStyle::clone ( ) const

pure virtual

Return a copy of the shape.

Returns

A copy of the shape.

Implements LibBoard::Shape.

Implemented in LibBoard::GouraudTriangle, LibBoard::Bezier, LibBoard::Polyline, LibBoard::Arrow, LibBoard::Text, LibBoard::Dot, LibBoard::Ellipse, and LibBoard::Line.

filled()

bool LibBoard::ShapeWithStyle::filled ( ) const

inline

Checks whether a shape is filled with a color or not.

Returns

true if the shape is filled.

Referenced by LibBoard::Ellipse::flushFIG(), LibBoard::Ellipse::flushPostscript(), and LibBoard::Polyline::flushPostscript().

name()

const std::string & LibBoard::ShapeWithStyle::name ( ) const

virtual

Returns

"ShapeWithStyle"

Reimplemented from LibBoard::Shape.

Reimplemented in LibBoard::Text.

setLineWidthScaling()

void LibBoard::ShapeWithStyle::setLineWidthScaling ( bool  on )

static

Globally enable/disable linewidth scaling when using scale functions.

Referenced by LibBoard::Board::disableLineWidthScaling(), LibBoard::Board::enableLineWidthScaling(), and LibBoard::Board::setLineWidthScaling().

---

The documentation for this struct was generated from the following files:

• include/board/ShapeWithStyle.h
• src/ShapeWithStyle.cpp
